NSK Surgic Pro 2
Go beyond
The internationally aclaimed Surgic Pro surgical micromotor system has evolved into Surgic Pro 2
There are 3 progress points, in operation, safety and wireless extensibility
Operability
There are a range of upgrades to ensure even greater comfort during implant treatment. These specifications put the needs of professionals first
Safety
Synonymous with Surgic Pro safer procedures are made possible with increased torque precision combined with the "Osseo Integration Monitoring Device, Osseo 100+"
Wireless Extensibility
Wireless connection with multiple devices significantly broadens the scope of implant treatment

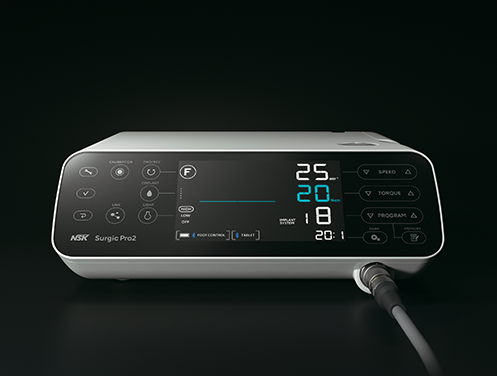

LCD Touch Panel
Visibility is guaranteed with the large, back-lit, high-contrast, LCD panel. The display can be adjusted in 10 brightness levels. The display's intuitive and easy-to-understand icons allow for smooth operation.

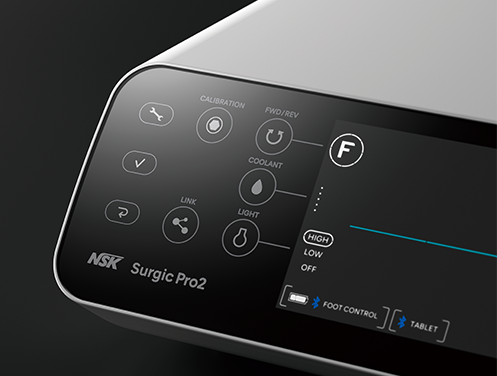

Easy-clean flat screen display
The sensitivity of the touch panel can be adjusted to reliably respond when surgical gloves and surgical barrier sheets are in use. Ultra narrow bezel of the display makes cleaning easier. The new design takes into account the latest treatment and cross-infection control requirements.

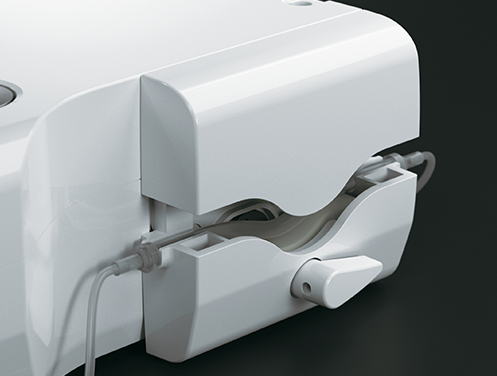

Silent and Smooth Irrigation Pump
The irrigation pump provides consistent and steady flow operating quietly in the background. Irrigation tube set-up is simple and straight-forward and the pump fits seamlessly in the compact and elegant design of Surgic Pro2.

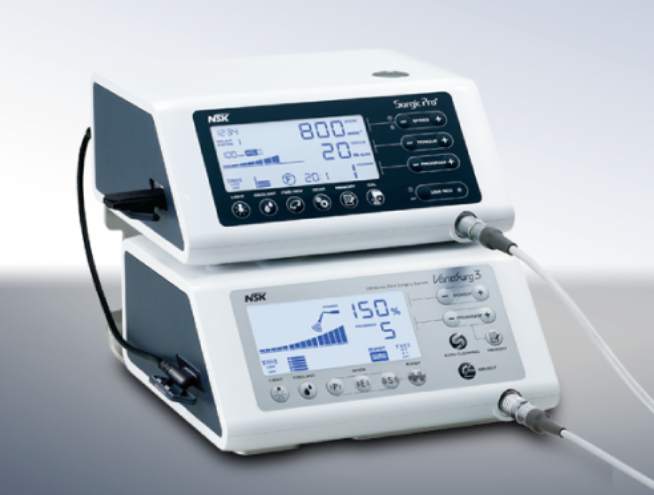

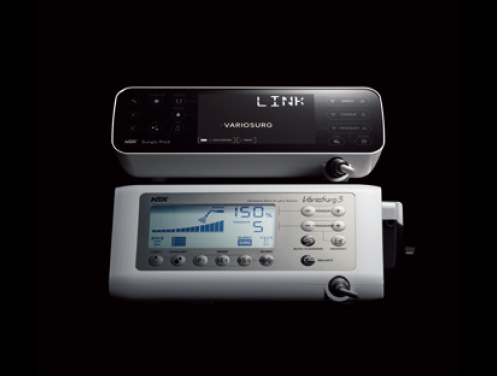

Linked with the 'VarioSurg 3' ultrasonic bone surgery system
Surgic Pro2 can easily be linked with the NSK ultrasonic surgical system VariosSurg 3 by adding our bluetooth link module.
With the NSK link stand the two units can be safely stacked to save space.

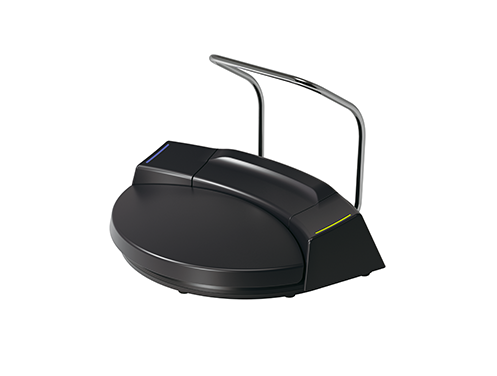

Foot Control Wireless

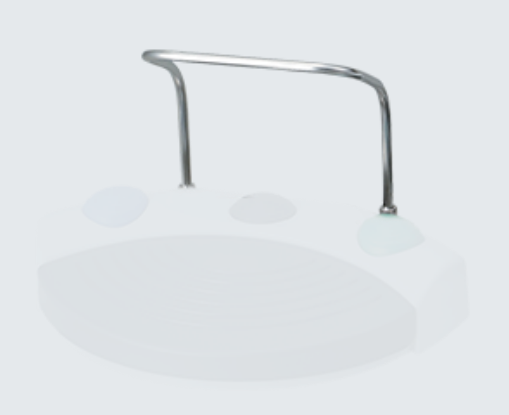

Bluetooth connectivity allows selection of the optimal position without worrying about cable length. The foot controller is 400g lighter than the previous model (handle included) making it easy to reposition. You can keep your focus on the treatment.

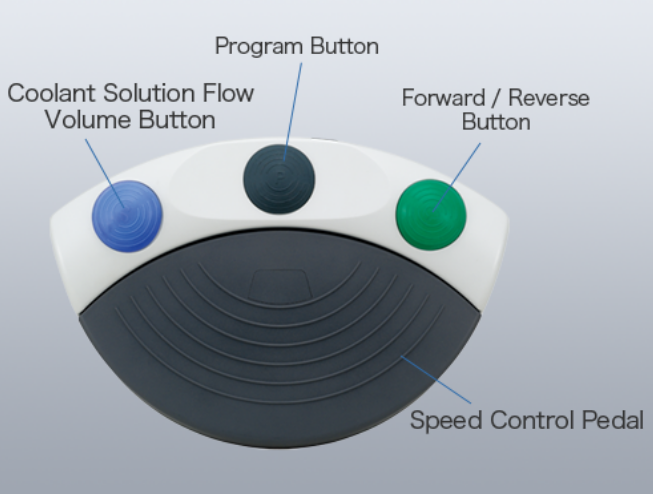

The "Coolant Solution Flow Volume Button", "Program Button" and "Forward/Reverse Button" may be customized using the 3 installed buttons allowing the operator to choose their preferred mode of operation. The energy-efficient power supply uses 3 AAA batteries, which last about 6 months.
A flashing light indicates when the batteries are running low.

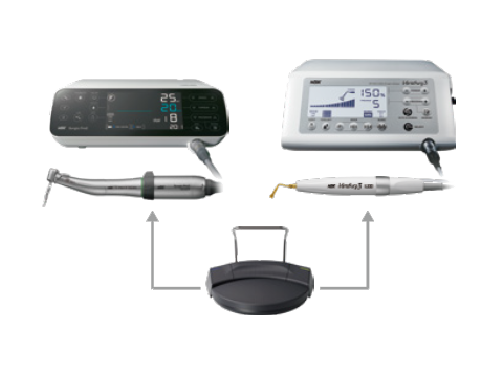

One Foot Control
You can easily switch between Surgic Pro2 and VarioSurg 3 for improved flexibility and workflow.

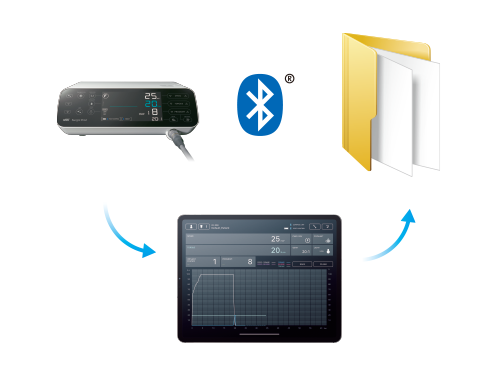

Linked with iPads
Installing a dedicated application and connecting an iPad to the control unit enables real-time display of detailed procedural data, such as the rotation speed and the torque range.

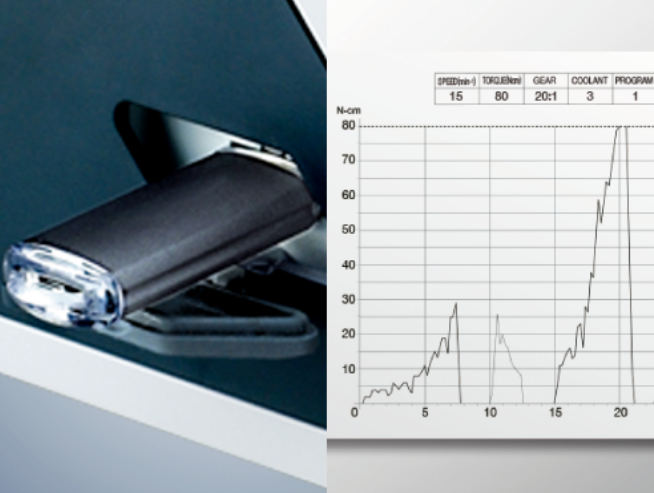

Procedural data can also be saved. Data can also be displayed and saved when connecting with Osseo 100+.
Traceability data management of procedural details allows implant treatment to be tailored to individual patients.

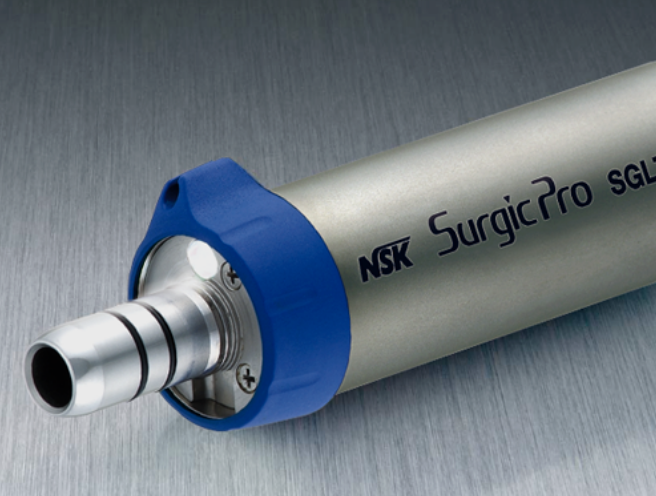

Visibility is significantly improved with the high-resolution color LED
Use of high-resolution color LED allows blood and gums to be seen as if naturally-lit, thereby providing increased visibility during treatment.
LED light source generates a minimal amount of heat and has excellent life expectancy.

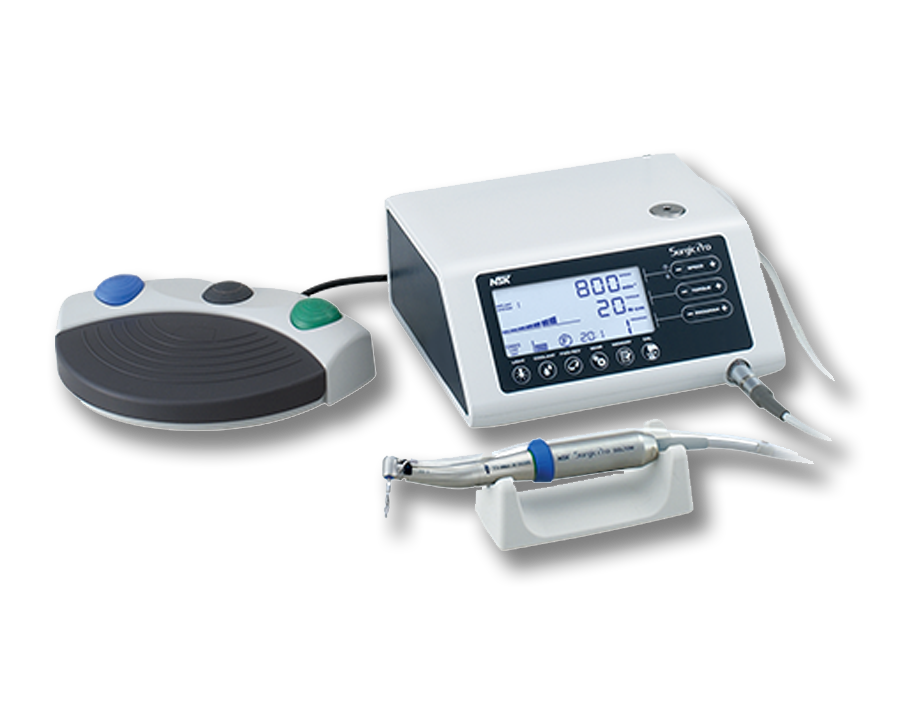

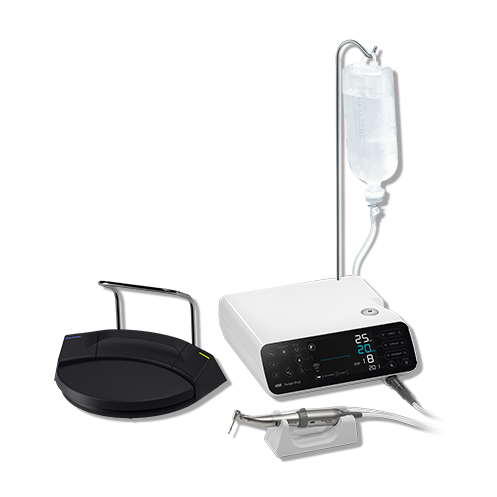

Surgic Pro 2
COMPLETE SET with X-SG20L
Optic Model: Surgic Pro2 OPT Order Code: Y1004195
COMPLETE SET with SG20
Non-Optic Model: Surgic Pro2 OPT Order Code: Y1004196
Specifications
Power Supply: AC 100-240 V 50/60 Hz
Max. Pump Output: 75 mL/min
Programs: Programs / Implant Systems
Dimensions: W 245 X D 235 X H 90 mm
Torque: 5-80 Ncm
Motor Speed: 200-40,000 min-1
Light Power (Optic Micromotor): Over 32,000 LUX
Foot Control Functions: Cooland Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal
Contents - COMPLETE SET with X-SG20L
Control Unit / SGL80M Optic Micromotor

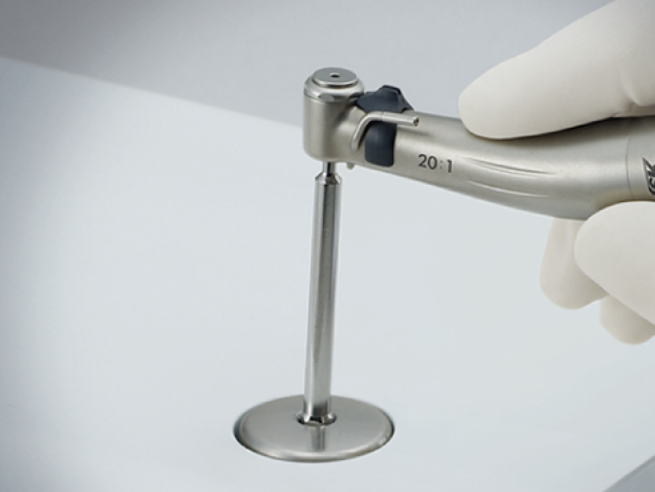

X-SG20L Optic Handpiece (20:1 Reduction)
Foot Control Wireless
Irrigation tube (pack of 3) and other accessories
Contents - COMPLETE SET with SG20
Control Unit / SG80M Optic Micromotor
SG20 Optic Handpiece (20:1 Reduction)
Foot Control Wireless
Irrigation tube (pack of 3) and other accessories
Compatible Terminals
iPad (5th generation)
iPad (6th generation)
iPad (7th generation)
iPad (8th generation)
iPad Pro 12.9-inch (3rd generation)
iPad Pro 11-inch
iPad Pro 12.9-inch (4th generation)
iPad Pro 11-inch (2nd generation)
iPad Pro 12.9-inch (5th generation)
iPad Pro 11-inch (3rd generation)
Option & Accessories

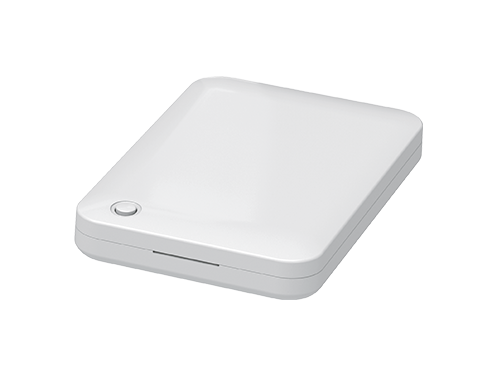

Wireless Link Tools (Surgic Pro 2 x VarioSurg 3)
Model: Link Module
Order Code: Z1402001
Contents
- Link Module
- Link Cable
Connecting via the compact Wireless Link Set allows for operation of 2 surgical systems with a single wireless foot control

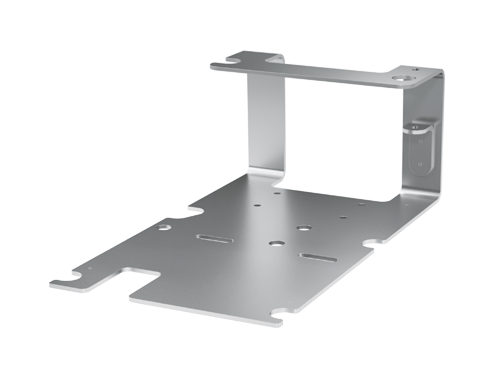

Wireless Link Tools (Surgic Pro 2 X VarioSurg 3
Model: Link Stand 2
Order Code: Z1452001
Connecting via the compact Wireless Link Set allows for operation of 2 surgical systems with a single wireless foot control

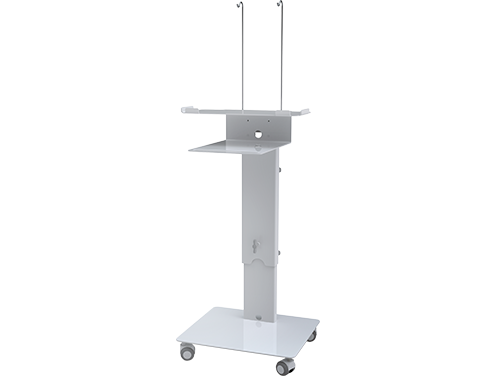

iCart Duo
Model: iCart Duo
Order Code: S9090
The Surgic Pro2 and VarioSurg 3 surgical systems and their accessories are efficiently and functionally housed in specialist carts

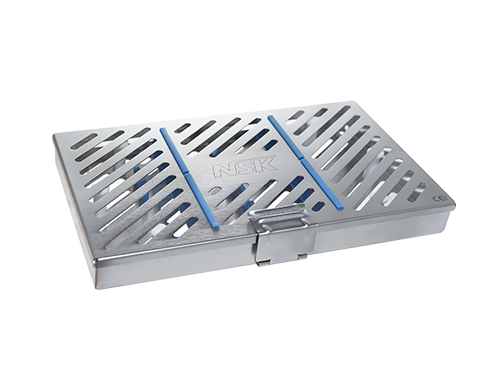

Sterilization Cassette
Model: SG-CASE
Order Code: S900040
Dimensions
- W 279 mm
- D 183 mm
- H 34 mm
The sterilization Cassette is designed for the safe processing and storage of Surgic Pro2 components

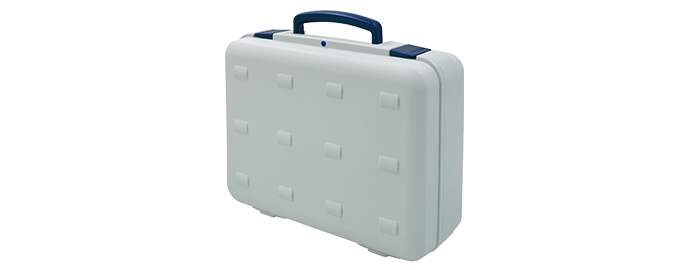

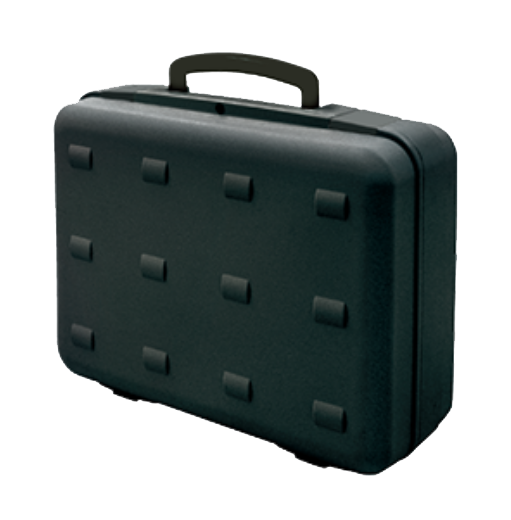

Carrying Case for Surgic Pro 2
Model: Carrying Case
Order Code: Y1004219
Dimensions
- W 534 mm
- D 427 mm
- H 207 mm
Carrying case for componets and accessories of Surgic Pro2
